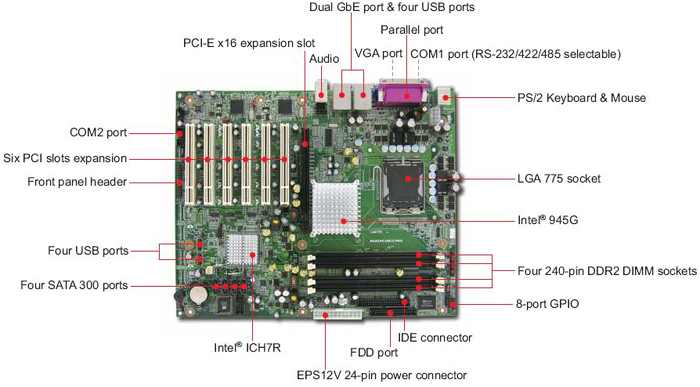

RUBY-9715VG2AR
Intel Pentium D, Pentium 4 or Celeron D processor based ATX Industrial mainboard with DDR2 SDRAM, VGA, Dual gigabit ethernet, Audio and USB

ROBO-9715VG2AR
  • Support Pentium D processor with 1066/800/533Mhz FSB
  • DDR2 Dual Channel 667/533 SDRAM up to 4GB
  • Intel GMCH integrated graphics
  • One PCI Express x16 slot features
  • Dual Gigabit Ethernet port based on PCI Express x1 intereface
  • Four SATA RAID controllar
    		•

    CPU
    • Intel Pentium D, Pentium 4 or Celeron D
    • LGA-775 package
    Processor Side Bus
    • 1066/800/533MHz
    Chipset
    • Intel 945G, ICH7R
    Memory
    • Up to 4 GB DDR2 667/533 SDRAM on four 240-pin DIMM sockets
    On-Board I/O
    • Two serial (RS-232 x 1, selectable RS-232/422/485 x 1 ports)
    • Eight USB 2.0 ports
    • One D-sub 15-pin VGA out and one paralled port at rear panel

    PS/2 Keyboard & Mouse
    • One PS/2 Keyboard/mouse at rear I/O panel

    Expansion
    • Six 32-bit PCI expansion slots
    • One PCI Express x16 slot for graphics card, ADD2/+ card or PCI Express x1 card

    Hardware Monitoring
    • System monitor (fan, temperature, voltage)

    ACPI Function
    • Modem-Ring-On and Wake-On-LAN

    Board Dimension
    • 312.8(L) x 243.8(W) mm
    • 12.3"(L) x 9.6"(W)
    • 4-layer PCB


    RUBY-9715VG2AR LGA-775 Pentium D, Pentium 4 or Celeron D processor based ATX Industrial mainboard with DDR2 SDRAM, VGA, Dual Gigabit Ethernet, Audio and USB
