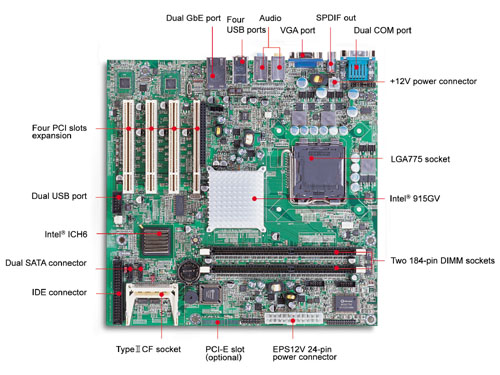

- Industrial mainboard in
Micro ATX form factor that supports Intel®
Pentium® 4 processor with Hyper-Threading
technology and Celeron® D processor in LGA-775
package
- Support most cost effective
DDR 400/333 up to 2GB in dual channel architecture
- Intel® new integrated
engine GMA 900 provides better display quality
and effects thru faster engine and SGI OpenGL
1.4, Microsoft DirectX 9.0 supported
- Four 32-bit PCI expansion
slots for most industrial I/O cards
- Dual Gigabit Ethernet
port that based on PCI Express x1 interface
without sharing bandwidth of PCI expansion bus
- 7.1 channel High Definition
audio output featuring high performance multimedia
experience to gaming, voice recognition, audio
conferencing applications
|
|
|
| Ordering
Guide |
| RUBY-9712VG2A |
LGA-775
Pentium® 4 or Celeron® D processor based
uATX Industrial Mainboard with DDR, VGA, Dual Gigabit
Ethernet, Audio and USB |
| |
*
Specifications are subject to change without notice.
* Pentium 4 is a registered trademark of Intel Corporation.
* Other trademarks, logos, brands and company names
are the property of their respective owners.
|
|
|
|
|
|
