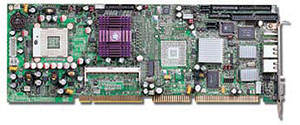

| ROBO-8718UG2A |
| Intel® Pentium® M or
Celeron® M processor in the mFCPGA479M socket based PICMG
SBC with DDR2 533 SDRAM, VGA and Dual Gigabit Ethernet |
|
|
- 400MHz and 533MHz FSB
selection features high computing power with
low heat
- Scalable graphics supports
Intel® 915GM integrated GMA 900 (ROBO-8718VG2A) or ATI M22
(ROBO-8718UG2A) graphics controller integrated
32mb display memory via PCI Express x 16
- ATI M22 (ROBO-8718UG2A)
graphics support dual view of LCD/CRT, TV/CRT,
LCD/LCD, LCD/TV displays configuration
- Dual Gigabit Ethernet
based on PCI Express x1, high bandwidth I/O
interface for fail-over, load balance and so
on applications
- Four SATA 150 ports for
high speed storage interface and easy routing
of calble (project vased support raid 0, 1 or
intel matrix storage)
|
|
|
| Ordering
Guide |
| ROBO-8718UG2A
|
| Socket 478 Pentium®
M or Celeron® Mprocessor based PICMG SBC with
DDR2, ATI M22 graphics dual VGA, dual Gigabit Ethernet
and Audio |
| |
*
Specifications are subject to change without notice.
* Pentium M is a registered trademark of Intel Corporation.
* Other trademarks, logos, brands and company names
are the property of their respective owners.
|
|
|
|
|
|
