ROBO-8713UGA

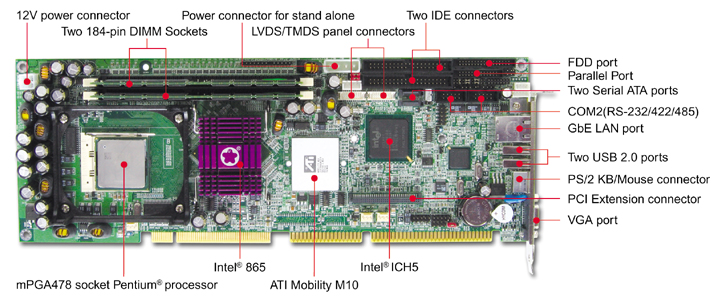

Intel® Pentium® 4 or Celeron® processor based PICMG single board computer with Gigabit Ethernet, DDR 400 SDRAM, AGP 8X VGA and audio.

Feature


Intel® Pentium® 4 processor with Hyper Threading technology runs at 800 MHz front side bus (fsb) Wire speed Gigabit Ethernet based on Communication Streaming Architecture (CSA) with double throughput

Intel® Pentium® 4 processor with Hyper-threading technology runs at 800MHz front side bus (FSB)
Scalable graphics support from Intel® 865G integrated Extreme Graphics 2 to ATI M9 graphics controller integrated 32 MB display memory via AGP4X or ATI M10 graphics controller integrated 64 MB display memory via AGP8X
Graphics support for dual view from LCD/CRT,TV/CRT, LCD/LCD, LCD/TV display configuration
Wire-speed Gigabit Ethernet based on Communications Streaming Architecture (CSA) with double throughput PCI based Ethernet
Rich expansion capability through proprietary PCI expansion connectors (optional)

ROBO-8713UGA	Socket 478 Pentium® 4 or Celeron® processor based PICMG SBC with DDR 400, M10 w/64 MB via AGP8X, Gigabit Ethernet and audio
ROBO-8713SGA	Socket 478 Pentium® 4 or Celeron® processor based PICMG SBC with DDR 400, M9 w/32 MB via AGP4X, Gigabit Ethernet and audio
ROBO-8713VGA	Socket 478 Pentium® 4 or Celeron® processor based PICMG SBC with DDR 400, integrated graphics, Gigabit Ethernet and audio
Accessory

Specifications are subject to change without notice.
Pentium® 4, Pentium® III, Pentium® II, Celeron® and Xeon?are registered trademarks of Intel® Corporation. Other trademarks, logos, brands and company names are the property of their respective owners.
