ROBO-678

Highly Integrated SBC (Single Board Computer) with Dual Fast Ethernet, Intel® DVMT Display and Ultra 160 SCSI, Based on the Intel® Pentium® III (FC-PGA) or Celeron® Processors

ROBO-678


Celeron® (PPGA ; FC-PGA)/Pentium ® III processor based SBC Support 66/100/133MHz PSB Intel 82815E chipset w/ on-chip AGP video Support ATA/100 IDE I/F & 100/133 memory clock Onboard Intel 82559 & 82801BA dual Ethernet

Intel® Pentium® III or Celeron® processor with PSB up to 133MHz; special space reserved for high performance Pentium III processor

Support PC100/133 SDRAM memory up to 512MB

On-board dual 10/100 Base-T Ethernet

Integrated 3D graphic controller (DVMT, 4Mbyte display cache)

Support two DMA/33/66/100 IDE

Compliant with PCI Bus spec V2.1

Full-size all-in-one SBC with PICMG 1.0 Rev 2.0 compliant

Proprietary PCI connector for expansion (optional daughter board provided, such as Ultra 160 SCSI or fast Ethernet)

Reserve space around IDE interface connector to fit DOM (Disk-On-Module) and socket 370 for easy installation of higher speed processor

Fully support ATX function with WOL, Modem-Ring On, K/B & Mouse wake-up

ISA64 driving capability

Specification

General

CPU

Intel® Pentium® III or Celeron® processors for PGA 370 socket

Chipset

Intel® 815E chipset

Memory

Two 168-pin DIMM sockets support up to 512MB of PC100/133 SDRAM

BIOS

Award system BIOS (512KB flash ROM)

On-Board I/O

On-board Winbond W83627HF super I/O with two USB ports (Only one USB port available when installed into standard chassis)

Parallel Port

Single parallel port controller with bi-directional capability

Watchdog Timer

Watchdog timeout period programmable via software from 0.5 sec to 254.5 min.
Can be enabled/disabled by jumper

Real Time Clock

Up to 7 years of battery backup protection
An external Li Battery

PS/2 Keyboard/Mouse

One 5-pin header connector for external keyboard connection
Share PS/2 keyboard 6-pin mini-DIN on rear bracket

Power Requirement

+5V@7A, +12V@200mA, -12V@20mA

Board Dimension

338.5(L) x 122(W) mm
13.33"(L) x 4.8"(W)
6-layer PCB

Operating Temperature

0 to 55 C adaptec AIC 7892 single channel Ultra 160 SCSI controller

DiskOnChip Flash Disk

Support M-Systems' flash disk up to 288MB

ISA64 ISA-bus Driving Capability

Support 64mA high driving capability for ISA-bus slot on backplane

System Hardware Monitor

On-board temperature and voltages monitoring
Beep alarms for failed fan out, over/under temperature threshold

* Specifications are subject to change without notice.
* Pentium III and Celeron are registered trademarks of Intel Corporation.
* Other trademarks, logos, brands and company names are the property of their respective owners.

ROBO-678

Highly integrated SBC with dual fast Ethernet, based on the Intel Pentium III or Celeron processor

ROBO-678N

Highly integrated SBC with single fast Ethernet, based on the Intel Pentium III or Celeron processor

ROBO-678W

Highly integrated SBC without fast Ethernet, based on the Intel Pentium III or Celeron processor

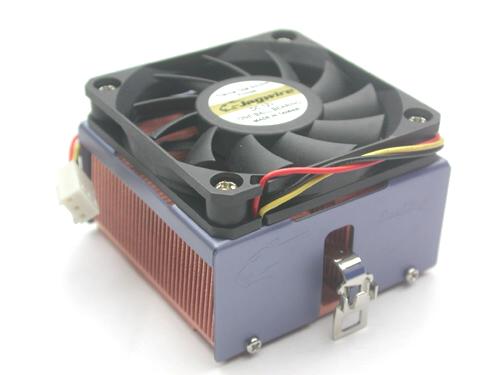

Heat Sink


MS-CPUFAN2U/1206	MS-CPUFAN/06BMR
