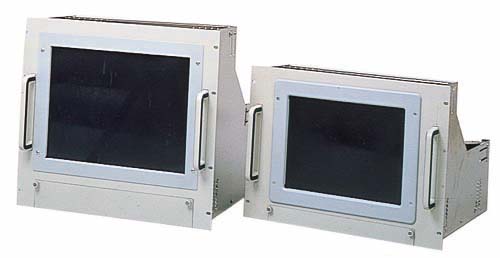

RMC-214/RMC-217
19" Rack-mount Enclosure for 14"/15"/17" Regular Monitor


P4 SBC at 533Mhz
Other View
RMC-214 / RMC-217 are designed for completing the total solution of the rack mount system. RMC-214 can fit the 14"/15" regular monitor for process control or monitoring, the RMC-217 can fit for the 17" monitor to have a large screen and better view for operator who need the accurate view from the monitor.

 Specification
General
Construction

Heavy-duty steel
Standard Color Light gray
Dimension

RMC-214
481(W) x 355(H) x 327(D) mm
19"(W) x 14"(H) x 12.9"(D)

RMC-217
481(W) x 443(H) x 450(D) mm
19"(W) x 17.4"(H) x 17.7"(D)

Weight

RMC-214
Net: 9kg (20.0lb)
Gross: 10kg (22.2lb)

RMC-217
Net: 12kg (26.7lb)
Gross: 13kg (28.9lb)


 Ordering Guide
RMC-214 19" Rack-mount Enclosure for 14"/15" Regular Monitor
RMC-217 19" Rack-mount Enclosure for 17" Regular Monitor
