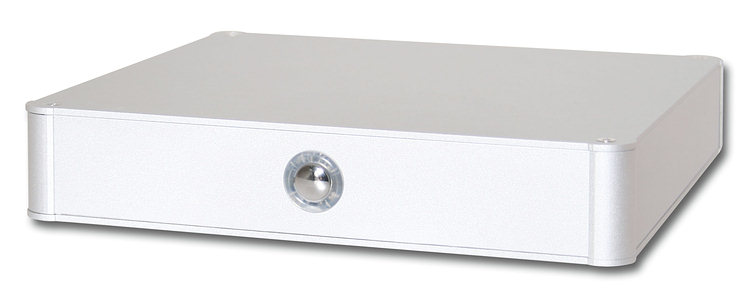

Built with Intel® mobile 945GSE chipset, WEBS-3331 takes advantage of Intel® Atom™ N270 technologies. This system features with its low power and also can provide superior performance of display which is perfect for DS application. Ultra slim size of system is good for saving user’s space and much better for mounting on the Panel back. With optional versatile mounting solutions, it is good to fx the system for different applications. Robust, fan-less and compact structure design is perfect for thin client, Medical, POS, Kiosk, and Gaming applications.



Features
  • Intel® Atom™ N270 1.6GHz processor and Intel® 945GSE + ICH7-M chipset

  • One 200-pin SO-DIMM supports single channel DDR2 SDRAM up to 2GB

  • Analog Display: Up to 2048 x 1536 (QXGA)

  • 36mm height supports thin client and Digital Signage application

  • Fan-less design

  • Versatile mounting solutions such as Wall and Panel mount (optional)
Ordering Guide
WEBS-3331-1600  Intel Atom N270 1.6GHz system with 2GB DDR2 and 4GB CF
WEBS-3331-1601  Intel Atom N270 1.6GHz system with 1GB DDR2 and 512MB CF
WEBS-3331-1602  Intel Atom N270 1.6GHz system
WEBS-3331   ChassisChassis Assembly with PSU
*Specifications are subject to change without notice.
* Atom, Core2Duo, CoreDuo, Duo-core, Pentium, Pentium II, Pentium III, Pentium 4 and Celeron are registered trademarks of Intel Corporation.
* Xeon is a trademark of Intel Corporation.
* Other trademarks, logos, brand names and company names are the property of their respective owners.
