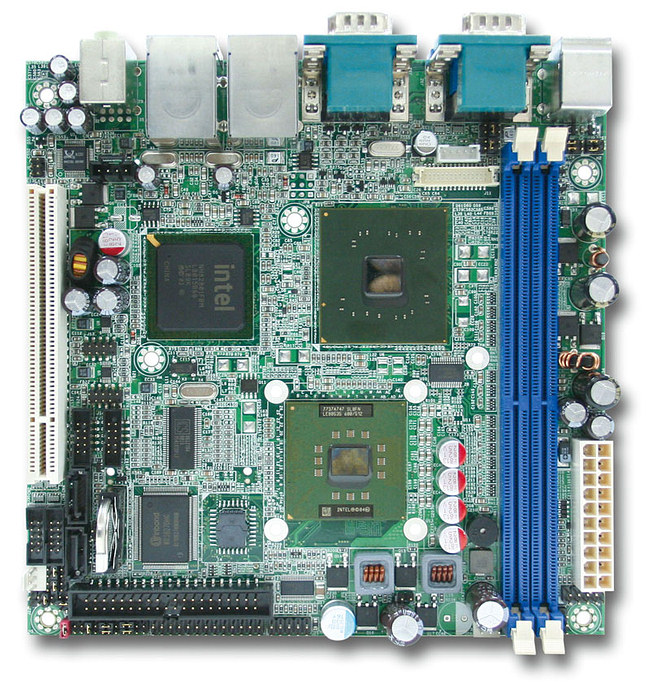

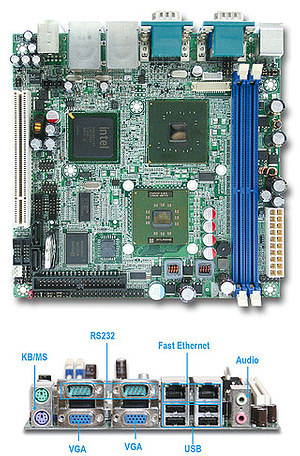

The WADE-8047 is a Mini-ITX embedded board featured its onboard dual VGA ports that can deliver better cost effective benefits when choosing display devices for operating. In addition, it can also provide LVDS, Dual channel DDR2 memory, two SATA ports, two 10/100 BASE-T Ethernet and expansion PCI slot. With low power Intel® Pentium® M / Celeron® M processor and Intel® 910GMLE and ICH6-M chipset, WADE-8047 can meet diversity applications such as Gaming, Lottery, Medical, and Digital Signage.



Features
  • Intel® Pentium® M / Celeron® M processor

  • Intel® 910GMLE and ICH6-M chipset

  • Two 240-pin DIMMs support dual channel DDR2 SDRAM up to 2GB

  • Dual Display: Dual VGA / 18-bit LVDS

  • Two 10/100mbps LAN and one PCI slot

  • Two SATA ports, One IDE connector and One Type II Compact Flash

  • Four COM Ports and Eight USB Ports


    • Chassis selections:
    WADE-2221 ChassisWADE-2231Q Chassis
    -1 x PCI Slot
    -2.5" HDD
    -1 x PCI Slot
    -3.5" HDD
    -Intel®Core 2™Quad
Ordering Guide
WADE-8076  Intel® Pentium® M / Celeron® M processors Based Mini-ITX Board with Dual VGA,18-bit LVDS, Dual LAN, Four COM Ports and Eight USB 2.0 Ports
*Specifications are subject to change without notice.
* Atom, Core2Duo, CoreDuo, Duo-core, Pentium, Pentium II, Pentium III, Pentium 4 and Celeron are registered trademarks of Intel Corporation.
* Xeon is a trademark of Intel Corporation.
* Other trademarks, logos, brand names and company names are the property of their respective owners.
