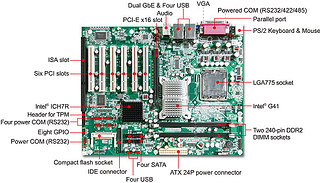

Intel® Core™ 2 Duo/ Core™ 2 Quad Processor based ATX Motherboard with Intel® G41 and ICH7R Chipset, support DDR2, VGA, Dual Gigabit Ethernet, Audio and USB



Features
  • Intel® Core™ 2 Quad / Core™ 2 Duo processor

  • Intel® G41 and ICH7R Chipset

  • FSB up to 1333MHz

  • Two 240-pin DIMMs support dual channel DDR2 SDRAM up to 4GB

  • Dual Gigabit Ethernet port

  • Six 32-bit PCI slots/ Five PCI slots and One ISA slot

  • Four SATA-300 ports support Intel® Maxtrix Storage Technology with RAID 0, 1, 5, 10

  • PCIE x16 slot

  • Six Powered Serial Port
Ordering Guide
RUBY-9719VG2AR  45nm Intel® Core 2 Duo/Core 2 Quad Processor based ATX motherboard with DDR2, VGA, Dual Gigabit Ethernet, Audio and USB
*Specifications are subject to change without notice.
* Atom, Core2Duo, CoreDuo, Duo-core, Pentium, Pentium II, Pentium III, Pentium 4 and Celeron are registered trademarks of Intel Corporation.
* Xeon is a trademark of Intel Corporation.
* Other trademarks, logos, brand names and company names are the property of their respective owners.
