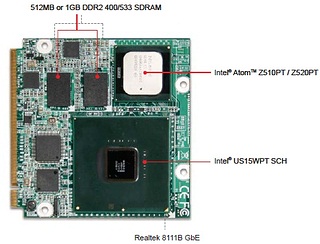

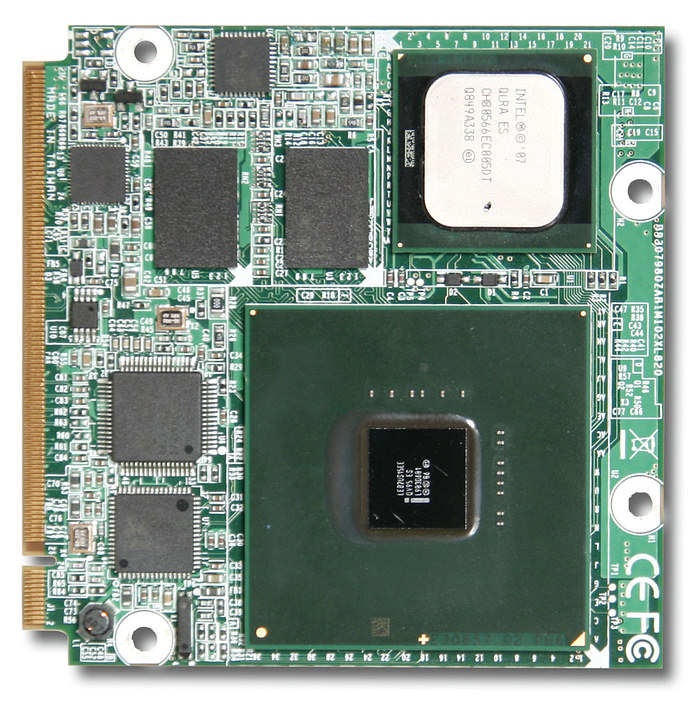

Qseven Module based on Intel® Embedded Menlow-XL Platform with DDR2 SDRAM,LVDS Display, Gigabit Ethernet, SDVO and SATA

Intel Atom Solutions

Intel Atom


Features
  • Intel® Atom™ Z510PT (1.1GHz) or Z520PT (1.33GHz)

  • Intel® US15WPT integrated GMA 500 Graphic, full hardware acceleration of H.264, MPEG2, VC1 and WMV9 is supported
  • Support Two SATA Ports from Qseven Golden Finger

  • Ultra Low CPU and SCH TDP (Under 5W) for fan-less application

  • Internal LVDS and SDVO interface for dual independent display

  • On board 512MB or 1GB DDR2 supported

  • 4Mbit flash ROM for easy BIOS upgrade and video BIOS for DFP
Ordering Guide
PQ7-M102XL-1100-0512  Intel® Atom™ Z510PT Processor based Qseven module with 512MB DDR2 SDRAM, LVDS Display, Gigabit Ethernet, SDVO and SATA
PQ7-M102XL-1100-1024  Intel® Atom™ Z510PT Processor based Qseven module with1GB DDR2 SDRAM, LVDS Display, Gigabit Ethernet, SDVO and SATA
PQ7-M102XL-1330-0512  Intel® Atom™ Z520PT Processor based Qseven module with 512MB DDR2 SDRAM, LVDS Display, Gigabit Ethernet SDVO and SATA
PQ7-M102XL-1330-1024  Intel® Atom™ Z520PT Processor based Qseven module with 1GB DDR2 SDRAM, LVDS Display, Gigabit Ethernet SDVO and SATA
PQ7-C100XL  3.5" ESB Qseven Carrier Board for Intel Menlow-XL based Qseven module
*Specifications are subject to change without notice.
* Atom, Core2Duo, CoreDuo, Duo-core, Pentium, Pentium II, Pentium III, Pentium 4 and Celeron are registered trademarks of Intel Corporation.
* Xeon is a trademark of Intel Corporation.
* Other trademarks, logos, brand names and company names are the property of their respective owners.
