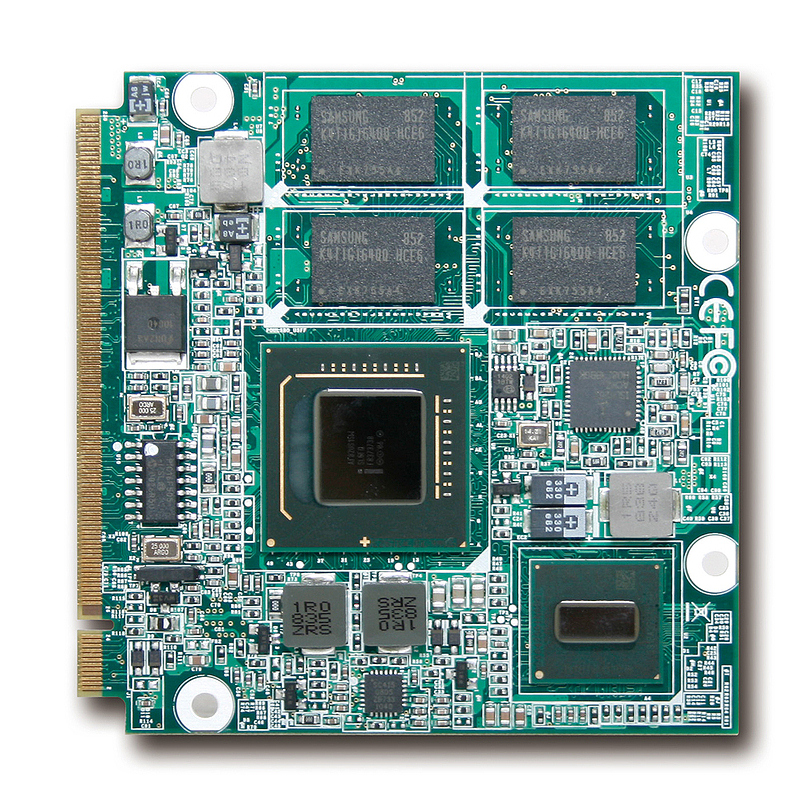

Qseven Module based on Intel® Atom™ Processor with DDR2 SDRAM, LVDS Display, Gigabit Ethernet, SDVO, and SATA

Intel Atom Solutions



Features
  • Intel® Atom™ Z510 (1.1GHz) or Z530 (1.6GHz)

  • Intel® US15W integrated GMA 500 Graphic, full hardware acceleration of H.264, MPEG2, VC1 and WMV9 is supported

  • Support Two SATA Ports from Qseven Golden Finger

  • Ultra Low CPU and SCH TDP (Under 5W) for fan-less application

  • Internal LVDS and SDVO interface for dual independent display

  • On board 512MB or 1GB DDR2 supported

  • 4Mbit flash ROM for easy BIOS upgrade and video BIOS for DFP
Ordering Guide
PQ7-M101G-1100-0512  Intel® Atom™ Z510 Processor based Qseven module with 512MB DDR2 SDRAM, LVDS Display, Gigabit Ethernet, SDVO and SATA
PQ7-M101G-1100-1024  Intel® Atom™ Z510 Processor based Qseven module with 1G DDR2 SDRAM, LVDS Display, Gigabit Ethernet, SDVO and SATA
PQ7-M101G-1600-0512  Intel® Atom™ Z530 Processor based Qseven module with 512MB DDR2 SDRAM, LVDS Display, Gigabit Ethernet SDVO and SATA
PQ7-M101G-1600-1024  Intel® Atom™ Z530 Processor based Qseven module with 1G DDR2 SDRAM, LVDS Display, Gigabit Ethernet SDVO and SATA
PQ7-C200  Mini-ITX Form Factor Carrier Board For Qseven Module with Dual Displays and Two GbE
*Specifications are subject to change without notice.
* Atom, Core2Duo, CoreDuo, Duo-core, Pentium, Pentium II, Pentium III, Pentium 4 and Celeron are registered trademarks of Intel Corporation.
* Xeon is a trademark of Intel Corporation.
* Other trademarks, logos, brand names and company names are the property of their respective owners.
