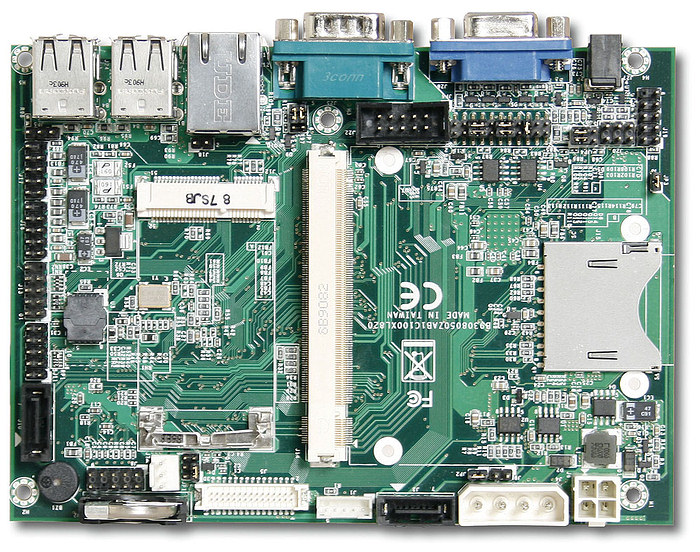

3.5" ESB Form Factor Carrier Board For Qseven Module

Ordering Guide

Larger Image(s)

Datasheet

Quote & Request

Features

Qseven carrier board accept Portwell Qseven modules

Intel^® Atom™ Z5XXPT and SCH US15WPT

3.5" ESB form factor to embedded applications

On Board DC to DC circuit for DC in application

Mini-PCIe support

Support boot from SD(SDIO 1.1)

Ordering Guide


	PQ7-C100XL	Qseven Module in 3.5" ESB Form Factor Carrier Board with Wide range temperature Support
	PQ7-M102XL	Qseven module based on Intel^® Embedded Menlow-XL Atom™ Processor with DDR2 SDRAM, LVDS Display, Gigabit Ethernet, SDVO and SATA

*Specifications are subject to change without notice.
* Atom, Core2Duo, CoreDuo, Duo-core, Pentium, Pentium II, Pentium III, Pentium 4 and Celeron are registered trademarks of Intel Corporation.
* Xeon is a trademark of Intel Corporation.
* Other trademarks, logos, brand names and company names are the property of their respective owners.
