Home >> Products >> Embedded System Board >> PEB-4700VLA

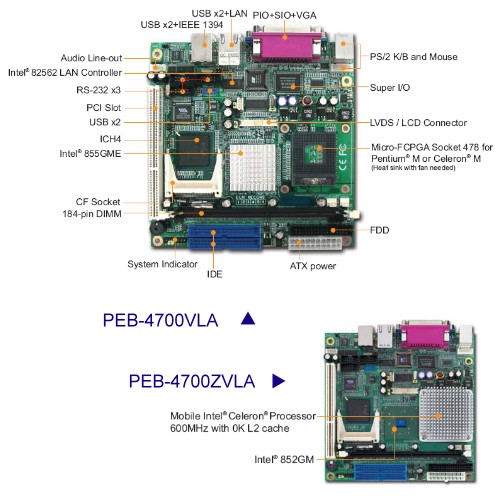

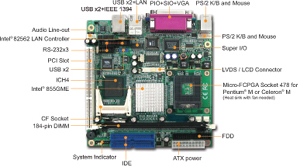

Micro-FCPGA Socket 478 Mini ITX motherboard for Pentium® M/ Celeron® M processor with Dual Display /LAN / Audio/ IEEE1394


Features
  • Micro-FCPGA Socket 478 for Pentium® M or Celeron® M

  • Intel® 855GME chipset

  • Chipset integrated LVDS / VGA function

  • Memory support DDR 200 / 266 MHz

  • Support 10 / 100 Base-TX Ethernet

  • AC97 Audio Codec, 6 x USB 2.0 ports, 4 x COM ports, IEEE1394, CF socket


    • Chassis selections:
    WADE-2221 ChassisWADE-2231Q Chassis
    -1 x PCI Slot
    -2.5" HDD
    -1 x PCI Slot
    -3.5" HDD
    -Intel®Core 2™Quad
Ordering Guide
PEB-4700VLA  Mini ITX motherboard for Intel® Pentium® M/ Celeron® M processor with Dual Display/ LAN/ Audio & IEEE1394
*Specifications are subject to change without notice.
* Atom, Core2Duo, CoreDuo, Duo-core, Pentium, Pentium II, Pentium III, Pentium 4 and Celeron are registered trademarks of Intel Corporation.
* Xeon is a trademark of Intel Corporation.
* Other trademarks, logos, brand names and company names are the property of their respective owners.
