Home >> Products >> Embedded System Board >> PEB-3730VLA

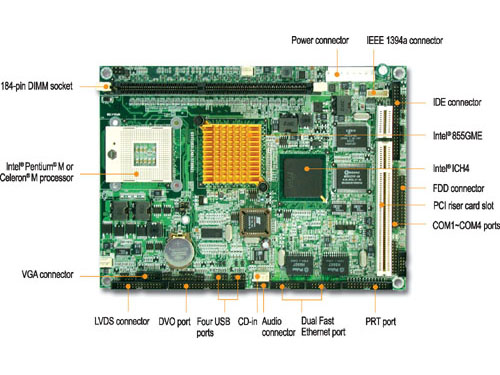

5.25" embedded system board based on Intel® Pentium® M or Celeron®M processor with DDR, AGP4X, VGA/panel, dual display, Fast Ethernet and audio


Features
  • Dual independent display supports LVDS, VGA and DVO

  • Compact 5.25" ESB form factor to fit in the widest range of system architecture

  • New generation Intel® 855GME chipset

  • On-board standard I/O, display, LCD panel, network and audio to meet the requirements of communication and multimedia platforms

  • On-board 10BASE-T/100BASE-TX Ethernet (Gigabit Ethernet optional, with minimum quantity required)

  • Up to 1 GB high performance DDR allows to run versatile embedded programs

  • One PCI (with PCI expansion defined by EmbATX)

  • Type II CF socket for CompactFlash disk to provide space for resident system setting, data and software
Ordering Guide
PEB-3730VLA  5.25" Embedded system board, based on Intel® Pentium® M or Celeron® M processor with DDR, AGP4X VGA/panel, dual display, 10/100 Ethernet and audio
*Specifications are subject to change without notice.
* Atom, Core2Duo, CoreDuo, Duo-core, Pentium, Pentium II, Pentium III, Pentium 4 and Celeron are registered trademarks of Intel Corporation.
* Xeon is a trademark of Intel Corporation.
* Other trademarks, logos, brand names and company names are the property of their respective owners.
