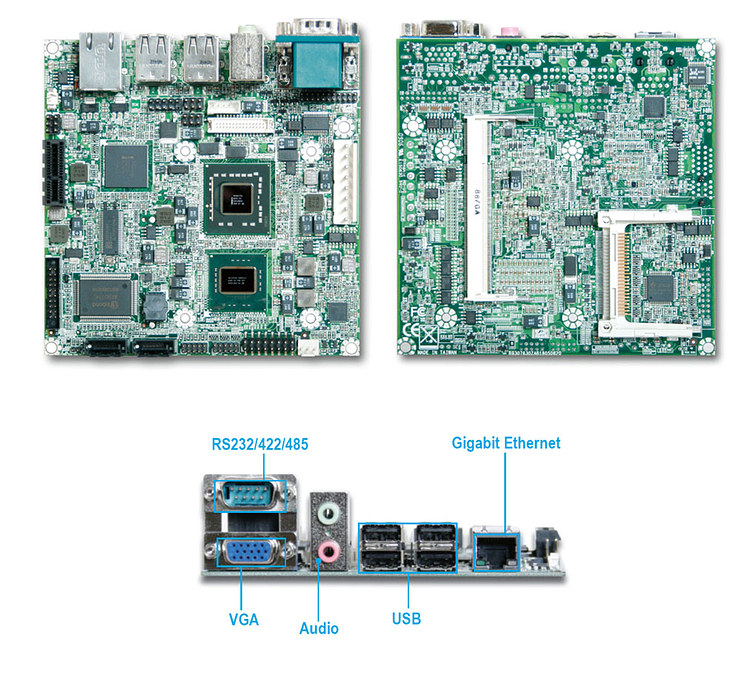

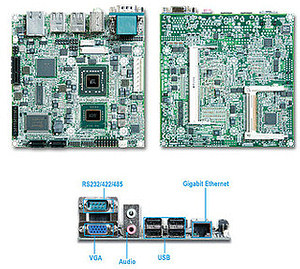

NANO-8050 adopts Intel® latest Small Form Factor(SFF) mobile chipset and takes advantage of leading Intel® latest SFF Core™ 2 Duo / Celeron® M technologies with high performance. It can support one DDR2 SODIMM memory, one Intel® Gigabit Ethernet port, one Type II Compact Flash, and one expansion PCI-Express x1 slot. Built in graphic media accelerator (GMA) 4500MHD graphic engine, NANO-8050 can support 3D performance and dual display by VGA and LVDS. This is a compact size with low-heat solution for versatile applications such as DVR, Digital Entertainment and Communications.

Intel Atom Solutions



Features
  • Intel® GS45 SFF and ICH9M SFF Chipset

  • One 200-pin SO-DIMM support DDR2 800/667MHz up to 2GB

  • Dual Display: VGA and 24-bit LVDS

  • One Intel® Gigabit Ethernet port

  • One PCI-Express x1 expansion slot

  • One Type II Compact Flash

  • Support iTPM function for more secure platforms


    • Chassis selections:
    WADES-2120 Chassis
    -1 x CF(II)
    -1 x SD slot
    -IDE 2.5"HDD
*Specifications are subject to change without notice.
* Atom, Core2Duo, CoreDuo, Duo-core, Pentium, Pentium II, Pentium III, Pentium 4 and Celeron are registered trademarks of Intel Corporation.
* Xeon is a trademark of Intel Corporation.
* Other trademarks, logos, brand names and company names are the property of their respective owners.
