Intel Atom N450 1.66GHz based desktop platform with 4GbE

Intel Atom Solutions



Features
  • Built with latest Intel® ATOM™ N450 (Pineview-M SC) 1.66GHz Processor

  • Intel® ICH8-M Chipset

  • 4 PCI-E GbE port onboard with 2 bypass segements

  • One Mini-PCIe slot for wireless applications

  • Support one 2.5" HDD or Solid State Disk (SSD)

  • Cost effective compact desktop system with fanless design

  • Single DDR2 SO-DIMM 667 memory channel up to 2GB

  • Support 64bit Operation Systems
Ordering Guide

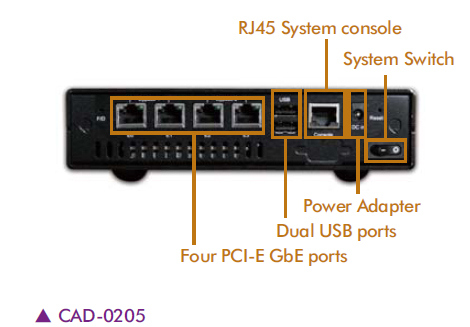

CAD-0205-3421  Intel® Atom™ N450 1.66GHz based DesktopNetwork Appliance with 4 GbE, 2 bypass and Mini-PCIe Expansion
CAD-0205-3401  Intel® Atom™ N450 1.66GHz based DesktopNetwork Appliance with 4 GbE and Mini-PCIe Expansion

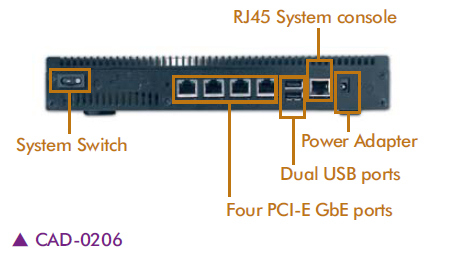

CAD-0206-3422  Intel® Atom™ D510 1.66GHz based DesktopNetwork Appliance with 4 GbE, 2 bypass and Mini-PCIe Expansion
CAD-0206-3402  Intel® Atom™ D510 1.66GHz based DesktopNetwork Appliance with 4 GbE and Mini-PCIe Expansion

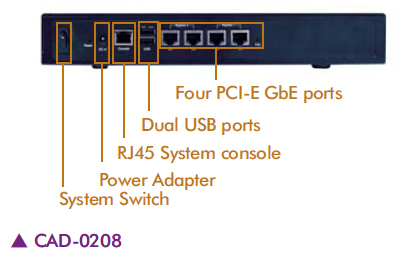

CAD-0208-3422  Intel® Atom™ D510 1.66GHz based DesktopNetwork Appliance with 4 GbE, 2 bypass and Mini-PCIe Expansion
CAD-0208-3402  Intel® Atom™ D510 1.66GHz based DesktopNetwork Appliance with 4 GbE and Mini-PCIe Expansion
*Specifications are subject to change without notice.
* Atom, Core2Duo, CoreDuo, Duo-core, Pentium, Pentium II, Pentium III, Pentium 4 and Celeron are registered trademarks of Intel Corporation.
* Xeon is a trademark of Intel Corporation.
* Other trademarks, logos, brand names and company names are the property of their respective owners.
