Industrial Digital / Analog I/O Product Line
PCI Digital I/O Card
PCI-DIO-24D PCI Digital I/O Card PCI-DIO-24D 24-bit parallel, digital input/output cards designed for use in PCI-Bus computers. The difference between the models is that I/O connections to PCI-DIO24D are via a standard 37-pin D-sub connector while I/O connections to PCI-DIO24H are via a 50-pin connector. The half length universal cards are 4.80 inches long (122 mm) and may be installed in any 3.3/5V PCI-bus slot in IBM and compatible personal computers.
PCI-DIO-24H PCI Digital I/O Card PCI-DIO-24H 24-bit parallel, digital input/output cards designed for use in PCI-Bus computers. PCI-DIO24H are via an industry standard 50-pin connector for external conditioning accessories . The half-length universal cards are 4.80 inches long (122 mm) and may be installed in any 3.3/5V PCI-bus slot in IBM and compatible personal computers.
PCI-DIO-24S PCI Digital I/O Card PCI-DIO-24S 24-bit parallel digital input/output cards designed for use in PCI-Bus computers. The card is 6.9 inches (175 mm) long and may be installed in any 5-volt PCI slot in IBM and compatible computers.
PCI-DIO-48 PCI Digital I/O Card PCI-DIO-48 48-bit parallel digital input/output cards designed for use in PCI-Bus computers. The card is 6.9 inches (175 mm) long and may be installed in any 5-volt PCI slot in IBM and compatible computers.
PCI-DIO-72 PCI Digital I/O Card PCI-DIO-72 Parallel digital input/output cards designed for use in PCI-Bus computers. The same printed circuit board is used for all three models and is populated for 72 bits respectively.
PCI-DIO-96C3 PCI Digital I/O Card PCI-DIO-96C3 96 line digital input/output card with counter/timer capabilities designed for use in high I/O density application requirements. I/O connections are made via four 50-pin header connectors.
PCI-DIO-120 PCI Digital I/O Card PCI-DIO-120 Parallel digital input/output cards designed for use in PCI-Bus computers. The same printed circuit board is used for all three models and is populated for 120 bits respectively.
PCI-IIRO-8 PCI Digital I/O Card PCI-IIRO-8 Low-cost, half-size cards that provide isolated input and output for PCI-Bus computers. The cards have eight optically-isolated digital inputs for AC or DC control signals and eight electro-mechanical relay outputs.
PCI-IIRO-16 PCI Digital I/O Card PCI-IIRO-16 Low-cost, half-size cards that provide isolated input and output for PCI-Bus computers. The cards have sixteen optically-isolated digital inputs for AC or DC control signals and sixteen electro-mechanical relay outputs.
PCI-IDIO-16 PCI Digital I/O Card PCI-IDIO-16 Low-cost, 6.8" card that provides isolated input and output for PCI-bus computers. The card has sixteen optically-isolated digital inputs for AC or DC control signals and sixteen isolated FET outputs.
PCI-IDI-16A PCI Digital I/O Card PCI-IDI-16A 16 individual, optically isolated inputs. These cards are ideal for use in control and instrumentation applications where high-voltage protection is required. Individual channel-to-channel isolation allows every channel to be physically and electrically separated from the others.
PCI-IDI-16AC PCI Digital I/O Card PCI-IDI-16AC 16 individual, optically isolated inputs with additional Change-of-State interrupt detection where constant polling of the card is not desired. These cards are ideal for use in control and instrumentation applications where high-voltage protection is required. Individual channel-to-channel isolation allows every channel to be physically and electrically separated from the others.
PCI-IDI-32A PCI Digital I/O Card PCI-IDI-32A 32 individual, optically isolated inputs. These cards are ideal for use in control and instrumentation applications where high-voltage protection is required. Individual channel-to-channel isolation allows every channel to be physically and electrically separated from the others.
PCI-IDI-32AC PCI Digital I/O Card PCI-IDI-32AC 32 individual, optically isolated inputs. These cards are ideal for use in control and instrumentation applications where high-voltage protection is required. Individual channel-to-channel isolation allows every channel to be physically and electrically separated from the others.
PCI-IDI-48A PCI Digital I/O Card PCI-IDI-48A 48 individual, optically isolated inputs. These cards are ideal for use in control and instrumentation applications where high-voltage protection is required. Individual channel-to-channel isolation allows every channel to be physically and electrically separated from the others.
PCI-IDO-16 PCI Digital I/O Card PCI-IDO-16 16 individual, optically isolated differential outputs. These cards are ideal for use in control and instrumentation applications where high-voltage protection is required. Individual channel-to-channel isolation allows every channel to be physically and electrically separated from the others.
PCI-IDO-32 PCI Digital I/O Card PCI-IDO-32 32 individual, optically isolated differential outputs. These cards are ideal for use in control and instrumentation applications that require high-speed switching and/or long-life expectancy which precludes using traditional electro-mechanical relays. Individual channel-to-channel isolation allows every channel to be physically and electrically separated from the others.
PCI-DIO-48S PCI Digital I/O Card PCI-DIO-48S 48-bit parallel digital input/output cards designed for use in PCI-Bus computers. The card is 6.9 inches (175 mm) long and may be installed in any 5-volt PCI slot in IBM and compatible computers. 48S cards use 50-pin headers on the face of the board,
PCI-DIO-96 PCI Digital I/O Card PCI-DIO-96 Parallel digital input/output cards designed for use in PCI-Bus computers. The same printed circuit board is used for all three models and is populated for 96 bits respectively.
LPCI-IIRO-8 PCI Digital I/O Card LPCI-IIRO-8 Half-size Low-Profile PCI bus compatible card that provides isolated digital input and output interface for PCI-Bus computers. The card has eight optically-isolated digital inputs for AC or DC control signals and eight electromechanical relay outputs.
PCI-IDI-48AC PCI Digital I/O Card PCI-IDI-48AC 48 individual, optically isolated inputs with additional Change-of-State interrupt detection where constant polling of the card is not desired. These cards are ideal for use in control and instrumentation applications where high-voltage protection is required. Individual channel-to-channel isolation allows every channel to be physically and electrically separated from the others.
PCI-IDO-48 PCI Digital I/O Card PCI-IDO-48 48 individual, optically isolated differential outputs. These cards are ideal for use in control and instrumentation applications that require high-speed switching and/or long-life expectancy which precludes using traditional electro-mechanical relays. Individual channel-to-channel isolation allows every channel to be physically and electrically separated from the others.

USB Digital I/O Device
USB-DIO-32I USB Digital I/O Device USB-DIO-32I The USB-DIO-32I is an ideal solution for adding portable, easy-to-install digital I/O and counter capabilities to any computer with a USB port. It also allows the direction of each digital I/O to be configured independently, unlike most DIO products that assign input/output direction in groups of 4 or 8 bits.
USB-IIRO-4 USB Digital I/O Device USB-IIRO-4 Featuring 4 Form C (SPDT) electromechanical relays and 4 optically isolated digital inputs, PC/104 sized board and mounting holes installed in a small rugged enclosure with screw termination connections for status monitoring and digital control using USB.
USB-IIRO4-DB USB Digital I/O Device USB-IIRO4-DB USB 4-port hub internally to provide four optically isolated digital inputs and four electromechanical relay outputs in a small rugged enclosure with DB25 connector.
USB-II-16 USB Digital I/O Device USB-II-16 Portable solution for adding easy-to-install 16 isolated digital inputs, PC/104 sized board and mounting holes installed in a small rugged enclosure with screw termination connections for status monitoring using USB.
USB-RO-16 USB Digital I/O Device USB-RO-16 Portable solution for adding easy-to-install 16 Form C (SPDT) electromechanical relay outputs, PC/104 sized board and mounting holes installed in a small rugged enclosure with screw termination connections for digital control using USB.
USB-IIRO-16 USB Digital I/O Device USB-IIRO-16 Featuring 16 Form C (SPDT) electromechanical relays and 16 optically isolated digital inputs, PC/104 sized board and mounting holes installed in a small rugged enclosure with screw termination connections for status monitoring and digital control using USB.
USB-CTR-15 USB Digital I/O Device USB-CTR-15 The USB-CTR-15 is an ideal solution for adding portable, easy-to-install, fifteen 16-bit counter/timers to any PC or embedded system with a USB port. With PC/104 sized board and mounting holes installed in a small rugged enclosure with flexible and configurable screw termination connections this unit is ideal for many complex counting and timing functions.
USBP-II8IDO4A USB Digital I/O Device USBP-II8IDO4A The USBP-II8IDO4A is an ideal OEM USB solution for adding embedded reliable and robust multi-function I/O capabilities to any embedded computer supporting Pico-I/O^(TM) and the SUMIT^(TM) A connector. The Pico-I/O^(TM) board standard (SFF-SIG: www.sff-sig.org) is the latest, smallest, stacking form factor for embedded I/O since the PC/104 standard using half the area of a PC/104 module. Up to four of the USBP-II8IDO4A can be mounted together.
USB-IIRO-8 USB Digital I/O Device USB-IIRO-8 Featuring 8 Form C (SPDT) electromechanical relays and 8 optically isolated digital inputs, PC/104 sized board and mounting holes installed in a small rugged enclosure with screw termination connections for status monitoring and digital control using USB.
U-RDI-54 USB Digital I/O Device U-RDI-54 Remote rugged 54-bit digital inputs from USB in a NEMA 4 enclosure for harsh environments. Digital voltage inputs up to 50V per channel can be monitored.

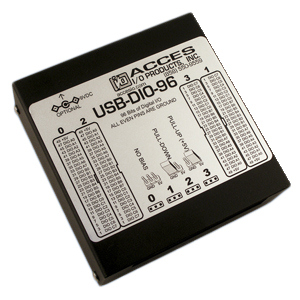

USB-DIO-96 USB Digital I/O Device USB-DIO-96 The USB-DIO-96 features 96 or 48 bits of TTL-compatible digital I/O with high-current capabilities. Each digital port can be programmed to accept inputs or to drive outputs in 12 groups of 8-bit ports. Power is supplied to the card via the USB cable or for higher current capabilities, external power may be used.
top
PCI Analog Input Card
PCI-AI12-16A PCI Analog Input Card PCI-AI12-16A Multifunction, high-speed, analog-to-digital converter board for use in PCI-Bus computers. It accepts up to 16 single-ended or eight differential inputs. Include foregoing plus includes a 2K Samples FIFO data buffer and a 2K words Point List FIFO buffer
PCI-A12-16A PCI Analog Input Card PCI-A12-16A 12-bit Multifunction A/D 100Khz card. It accepts up to 16 single-ended inputs or eight differential inputs, eight programmable voltage ranges plus 4-20mA inputs. Additional I/O includes two 12-bit D/A, 24 Digital I/O, on-board Pacer clock and counter timers.
LPCI-A16-16A PCI Analog Input Card LPCI-A16-16A First low profile High-Speed, Universal PCI, 16-bit Multifunction Analog I/O Board, provides 500k samples/second for the board¡¦s 16 single-ended or eight differential analog input channels. Auto calibration and 11 selectable voltage ranges. Fits in any 3.3/5V PCI slot.
LPCI-AIO16A PCI Analog Input Card LPCI-AIO16A High-Speed, Low-Profile, Universal PCI, 16-bit Multifunction Analog I/O Board
PCI-AI12-16 PCI Analog Input Card PCI-AI12-16 Low cost 12-bit 100KHz, A/D multifunction board for use in PCI-Bus computers with 3.3/5V PCI slots. It accepts up to 16 single-ended or eight differential inputs with eight programmable ranges (Unipolar & Bipolar) and 4-20mA current range.
top
USB Analog Input Device
USB-AI12-16E USB Analog Input Device USB-AI12-16E Economical 100kHz 12-bit A/D for 16 single-ended and 8 differential inputs from any computer with a USB 2.0 port. PC/104 sized board and mounting holes installed in a small rugged enclosure with SCSI connectior for Data Acquisiion and digital control. The unit has manual calibration, 16 high-current digital I/O lines, and 16-bit counter/timer for event counting or frequency generation. Powered by USB port.
USB-AI12-16A USB Analog Input Device USB-AI12-16A High-speed 500kHz 12-bit A/D for 16 single-ended and 8 differential inputs from any computer with a USB 2.0 port. PC/104 sized board and mounting holes installed in a small rugged enclosure with SCSI connectior for Data Acquisiion and digital control. The unit has real-time autocalibration, 16 high-current digital I/O lines, and 16-bit counter/timer for event counting or frequency generation. Powered by USB port.
USB-AI12-16 USB Analog Input Device USB-AI12-16 High-speed 250kHz 12-bit A/D for 16 single-ended and 8 differential inputs from any computer with a USB 2.0 port. PC/104 sized board and mounting holes installed in a small rugged enclosure with SCSI connectior for Data Acquisiion and digital control. The unit has software autocalibration, 16 high-current digital I/O lines, and 16-bit counter/timer for event counting or frequency generation. Powered by USB port.
USB-AI16-16E USB Analog Input Device USB-AI16-16E Economical High-speed 250kHz 16-bit A/D for 16 single-ended and 8 differential inputs from any computer with a USB 2.0 port. PC/104 sized board and mounting holes installed in a small rugged enclosure with SCSI connectior for Data Acquisiion and digital control. The unit has software autocalibration, 16 high-current digital I/O lines, and 16-bit counter/timer for event counting or frequency generation. Powered by USB port.
USB-AI16-16A USB Analog Input Device USB-AI16-16A High-speed 500kHz 16-bit A/D for 16 single-ended and 8 differential inputs from any computer with a USB 2.0 port. PC/104 sized board and mounting holes installed in a small rugged enclosure with SCSI connectior for Data Acquisiion and digital control. The unit has real-time autocalibration, 16 high-current digital I/O lines, and 16-bit counter/timer for event counting or frequency generation. Powered by USB port.
top
PCI Analog Output Card
PCI-DA12-2 PCI Analog Output Card PCI-DA12-2 Two Channel Analog Output with independent double-buffered, 12-bit D/A and 16-bits buffered digital I/O on a universal 3.3/5V powered half-sized PCI Card
PCI-DA12-4 PCI Analog Output Card PCI-DA12-4 Four Channel Analog Output with independent double-buffered, 12-bit D/A and 16-bits buffered digital I/O on a universal 3.3/5V powered half-sized PCI Card
PCI-DA12-6 PCI Analog Output Card PCI-DA12-6 Six Channel Analog Output with independent double-buffered, 12-bit D/A and 16-bits buffered digital I/O on a universal 3.3/5V powered half-sized PCI Card
PCI-DA12-8 PCI Analog Output Card PCI-DA12-8 Eight Channel Analog Output with independent double-buffered, 12-bit D/A, three 16-bit counter/timers and 24-bits buffered digital I/O on a universal 3.3/5V powered full-sized PCI Card
PCI-DA12-16 PCI Analog Output Card PCI-DA12-16 Sixteen independent double-buffered, digital-to-analog converters (DACs), and three 16-bit counter/timers Analog Output Cards
top
USB Analog Output Device
USB-DA12-8E USB Analog Output Device USB-DA12-8E 8 digital-to-analog converters (DACs) with both differential and single-ended outputs on separate connectors
USB-DA12-8A USB Analog Output Device USB-DA12-8A Arbitrary Waveform streaming from Eight Channel Analog Output double-buffered 12-bit D/A with both differential and single-ended outputs on separate connectors. PC/104 sized board and mounting holes installed in a small rugged enclosure with screw termination board connections for analog output waveforms from any computer with a USB port.
top
Serial Communication Port Card
LPCI-COM-1S Serial Communication Port Card LPCI-COM-1S Low Profile single port asynchronous serial communication card that can be installed in any 3.3V or 5V PCI slot computer. Supports RS-422 and RS-485 protocols with auto control for RS-485 under all OS at baud rates up to 460.8Kbps
PCI-ICM-1S Serial Communication Port Card PCI-ICM-1S Single port asynchronous optically isolated RS-422/485 serial communication card that can be installed in any 3.3V or 5V PCI slot computer. Supports RS-422 and RS-485 protocols with auto control for RS-485 under all OS at baud rates up to 460.8Kbps
PCI-ICM-2S Serial Communication Port Card PCI-ICM-2S Dual port asynchronous optically isolated RS-422/485 serial communication card that can be installed in any 3.3V or 5V PCI slot computer. Supports RS-422 and RS-485 protocols with auto control for RS-485 under all OS at baud rates up to 460.8Kbps
PCI-422-485-2 Serial Communication Port Card PCI-422-485-2 Dual-port, asynchronous RS-422/485 serial communications card that can be installed in any 3.3V or 5V PCI slot in PC computers. Supports RS-422 and RS-485 protocols with auto control for RS-485 under all OS at baud rates up to 460.8Kbps
PCI-COM-2S Serial Communication Port Card PCI-COM-2S Dual-port, asynchronous RS-232/422/485 serial communications card that can be installed in any 3.3V or 5V PCI slot in PC computers. Supports RS-232, RS-422 and RS-485 protocols with auto control for RS-485 under all OS at baud rates up to 460.8Kbaud for RS-422/485 and 115.2Kbps for RS-232.
PCI-COM232-2 Serial Communication Port Card PCI-COM232-2 Dual-port, asynchronous RS-232 serial communications card that can be installed in any 3.3V or 5V PCI slot in PC computers. Supports RS-232 under all OS at baud rates up to 921.6 Kbps.
PCI-COM232-4 Serial Communication Port Card PCI-COM232-4 Quad-port, asynchronous RS-232 serial communications card that can be installed in any 3.3V or 5V PCI slot in PC computers. Supports RS-232 under all OS at baud rates up to 921.6 Kbps.
LPCI-COM232-4 Serial Communication Port Card LPCI-COM232-4 Low Profile Quad-port asynchronous RS-232serial communication card that can be installed in any 3.3V or 5V PCI slot computer. Supports RS-232 protocol under all OS at baud rates up to 921Kbps
LPCI-COM-4SM Serial Communication Port Card LPCI-COM-4SM Low Profile Quad-port asynchronous RS-232/422/485 serial communication card that can be installed in any 3.3V or 5V PCI slot computer. Supports RS-232, RS-422 and RS-485 protocols with auto control for RS-485 under all OS at baud rates up to 921Kbps
PCI-COM422-4 Serial Communication Port Card PCI-COM422-4 Four-port, asynchronous RS-422 serial communications card designed for use in PCI-Bus computers with half card 3.3V or 5V slots at baud rates up to 460.8Kbps.
PCI-ICM422-4 Serial Communication Port Card PCI-ICM422-4 Four-port, optically isolated asynchronous RS-422 serial communications card designed for use in PCI-Bus computers with 3.3V or 5V slots at baud rates up to 460.8Kbps. Fits in any slot that can accommodate "long" cards and is designed to provide effective communication on long communication lines in noisy environments
PCI-COM485-4 Serial Communication Port Card PCI-COM485-4 Four-port, asynchronous serial communications card designed for use in PCI-Bus systems
PCI-ICM485-4 Serial Communication Port Card PCI-ICM485-4 Four-port, optically isolated asynchronous RS-485 serial communications card designed for use in PCI-Bus computers with 3.3V or 5V slots at baud rates up to 460.8Kbps. Fits in any slot that can accommodate "long" cards and is designed to support Auto RS-485 control and support for multidrop networks.
LPCI-COM422-8 Serial Communication Port Card LPCI-COM422-8 Low Profile Eight-port asynchronous RS-422 serial communication card that can be installed in any 3.3V or 5V PCI slot computer. Supports RS-422 protocol under all OS at baud rates up to 921Kbps
LPCI-COM485-8 Serial Communication Port Card LPCI-COM485-8 Low Profile Eight-port asynchronous RS-485 serial communication card that can be installed in any 3.3V or 5V PCI slot computer. Supports RS-485 protocol with auto RS-485 control under all OS at baud rates up to 921Kbps
LPCI-COM-8SM Serial Communication Port Card LPCI-COM-8SM Low Profile Eight-port asynchronous RS-232/422/485 serial communication card that can be installed in any 3.3V or 5V PCI slot computer. Supports RS-232/422/485 protocol on any individual port with auto RS-485 control under all OS.
LPCI-COM232-8 Serial Communication Port Card LPCI-COM232-8 Low Profile Eight-port asynchronous RS-232 serial communication card that can be installed in any 3.3V or 5V PCI slot computer. Supports RS-232 protocol under all OS at baud rates up to 115.6Kbps
top
USB Serial Communication Port Device
CONV232-485 USB Serial Communication Port Device CONV232-485 Self powered DB9 RS-232 to DB9 RS-485 Serial Data Converter
CONV232-422 USB Serial Communication Port Device CONV232-422 Self powered DB9 RS-232 to DB9 RS-422 Serial Data Converter
USB-232 USB Serial Communication Port Device USB-232 USB to single DB9 RS-232 with included cable
USB-422 USB Serial Communication Port Device USB-422 USB to single DB9 RS-422 with included cable
USB-485 USB Serial Communication Port Device USB-485 USB to single DB9 RS-485 with included cable
USB-COM-2SM USB Serial Communication Port Device USB-COM-2SM USB two-port serial RS-232/422/485 adapter designed for use with any computer system equipped with a USB port. PC/104 sized board and mounting holes installed in a small rugged enclosure with two DB9 connectors.
USB-COM232-4A USB Serial Communication Port Device USB-COM232-4A Four-port RS-232 asynchronous serial communication adapter designed for use with any computer system equipped with a USB port
USB-COM-4S USB Serial Communication Port Device USB-COM-4S Four port asynchronous serial communication adapter designed for use with any computer system equipped with a USB port
USB-IIRO4-2SM USB Serial Communication Port Device USB-IIRO4-2SM USB 4-port hub internally to provide four optically isolated digital inputs, four digital electromechanical relay outputs and two ports of RS-232/422/485 serial communication in a small rugged enclosure with DB25 connector for digital and two DB9 connectors for serial.

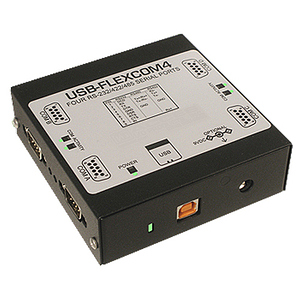

USB-FLEXCOM4 USB Serial Communication Port Device USB-FLEXCOM4 USB-FLEXCOM4 allows our rugged USB to quad-serial port board to be added to any PCI-104 or PC/104 stack by connecting it to a simple USB port usually included on-board with embedded CPU form factors such as EBX, EPIC, and PC/104
top
I/O Accessories
top
