Pentium 4 (P4) 19" chassis 2U for industrial rack-mount

PRC-2204

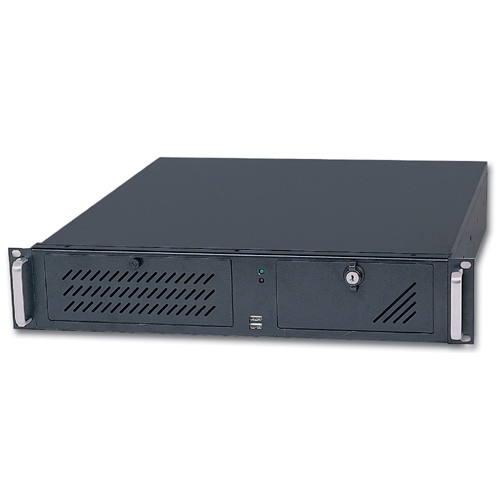

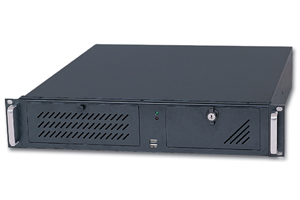

19" 2U industrial rack-mount chassis suitable for Intel Pentium® 4 (P4) system platform


Up to four PCI expansion slots Detachable card cage design for ease of installation of SBC and add-on card Cooling tunnel design, between SBC and PSU, for expiring heat generated by CPU Two 8 cm cooling fans with one replaceable filter at the front and one 5 cm blower at the back Two LED indicators for power on/off and hard drive active

Features	Benefits
SBC fixing mechanism	Secure Single Board computer (SBC) in the slot
Cooling tunnel design between SBC and power supply unit	Better ventilation to enhance system reliability
Replaceable air filter	For easy cleaning & exchange
Detachable card cage	For easy to install add-on cards
New door lock	The drive door can be open without key

General
Construction	Heavy-duty steel
Drive Bay	External: Notebook(NB) size CD-ROM (x1) + NB FDD (x1) Internal: 3.5" HDD (x2)
Air Filter	One front replaceable air filter
Cooling Fan	Two 8cm fans at the front One 5cm blower fan at the back
Indicator	Power On/Off (x1), HDD (x1)
Switch	Power On/Off (x1), System reset (x1)
Speaker	One 8 speaker
Connector	Two USB connectors on front panel One reserved COM port and one PRT on the rear panel
Standard Color	Black
Dimension	19" (W) x 19.78" (D) x 3.48" (H) 481.6 (W) x 502.4 (D) x 88.4 (H) mm
Weight	Net: 48.5 lbs. (22 kg) Gross: 55.1 lbs. (25 kg)
Backplane	PBP-06V4 (Vertical 6-slot PICMG backplane with 4 PCI-X)

Power Supply (ORION-3001PY optional)
Maximum Output	300W PFC
Output Voltage & Current	+5V@30A, +12V@15A, -5V@0.3A, -12V@0.8A,+3.3V@28A, +5Vsb@2.0A
Input Voltage	90V ~ 264V AC, full range
Input Frequency	47 ~ 63 Hz
Input Current	7A@115V, 4A@230V
Efficiency	>65%
MTBF Reliability	100,000 hrs.
Certification	UL, cUL, TUV, CE, FCC

Environment
Operating Temperature Range	32 to 104 degree Fahrenheit (0 to 40 degree Celsius)
Storage Temperature Range	32 to 158 degree Fahrenheit (0 to 70 degree Celsius)
Relative Humidity	5% to 95%, non-condensing

Ordering Guide

PRC-2204-06V4-330X	19" 2U rack-mount chassis with vertical 6-slot (4xPCI) PICMG backplane and 330W ATX power supply
PRC-2204-06V4-3001PY	19" 2U rack-mount chassis with vertical 6-slot (4xPCI) PICMG backplane and 300W PFC ATX power supply

Specifications are subject to change without notice. Pentium® 4, Pentium® III, Pentium® II, Celeron® and Xeon™ are registered trademarks of Intel® Corporation. Other trademarks, logos, brands and company names are the property of their respective owners.
