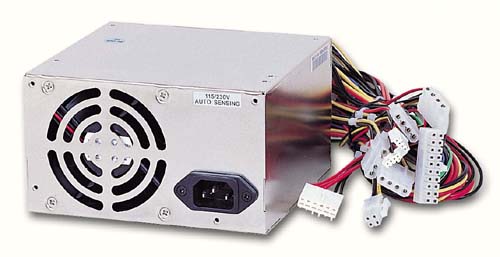

ORION-D4601 460W PS/2 ATX power supply with active PFC

ORION-D4601

460W PS/2 ATX power supply with active PFC

Feature
PS/2 ATX power supply suitable for 2U and up chassis Active PFC, full-range input Support for Intel® Pentium® 4 processor Max. +5V standby output is 2A

Specification
Input Voltage	90V ~ 264V AC, full range
Input Frequency	47 ~ 63 Hz
Input Current	7.5A@115V, 3.5A@230V
Efficiency	>71%
Holdup Time	16 ms at full load
Over Voltage Protection	+5V: 5.7~6.5V; +3.3V: 3.9~4.3V; +12V: 13.6~15V
Over Current Protection	+5V: 44~60A; +3.3V: 3.3~45A; +12V: 29.7~40.5A
Over Power/Load Protection	Output power over 110% ~ 150%
MTBF	98,302 hrs.
EMI & Safety Approval	UL, cUL, TUV, CE, FCC
Temperature/Humidity	Operating: 0 ~ 40 degree Celcius Storage: -20 ~ 60 degree Celcius
Dimension	5.9"W x 5.5"D x 3.4"H

Ordering Guide
ORION-D4601	460W PS/2 ATX power supply with active PFC

Specifications are subject to change without notice. Pentium® 4, Pentium® III, Pentium® II, Celeron® and Xeon?are registered trademarks of Intel® Corporation. Other trademarks, logos, brands and company names are the property of their respective owner
