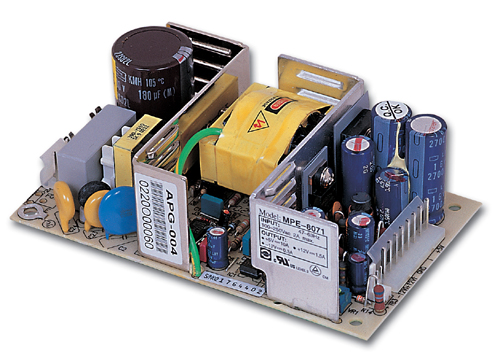

MPE-8071 70W universal input open frame power supply

MPE-8071

70W Universal input open frame power supply

Feature
3"x5" open frame power supply suitable for node chassis Three rails outputs (+5V, +12V & -12V) Universal AC input Higher +5V output (10A)

Specification
Input Voltage	90V ~ 132V, 180V ~ 264V AC Auto-range
Input Frequency	47 ~ 63 Hz
Input Current	2A@115V, 1A@230V
Efficiency	>70%
Holdup Time	16 ms at full load
Over Voltage Protection	+5V: 5.6~6.6V; +3.3V: 3.6~4.2V; +12V: 13.2~14.6V
Over Power/Load Protection	Output power over 110% ~ 160%
MTBF	276,193 hrs.
EMI & Safety Approval	UL, cUL, TUV, CE, FCC
Temperature/Humidity	Operating: 0 ~ 50 degree Celcius Storage: -40 ~ 85 degree Celcius
Dimension	3"W x 5"D x 1.5"H

Ordering Guide
MPE-8071	70W universal input open frame power supply
