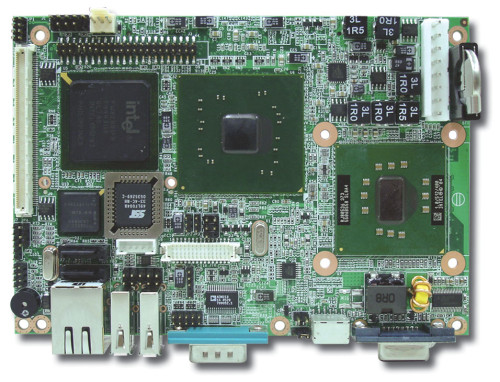

PEB-2730VL

3.5" Intel® ECX Form Factor, Intel® LV Pentium® M or ULV Celeron® M Processor with DDR-II SDRAM, GMA900 VGA / Panel / CRT / Dual Display and Fast Ethernet (Audio through PMIO)

Feature

Intel® new initiative for compact 3.5" ECX form factor to fit in most wide range of system architecture
Intel® low power chipset 915GM powered by low voltage Pentium® M with frequencies of up to 1.4GHz with 2M L2 cache; optional fan-less ultra low power model with ULV Celeron® M 1.0Ghz
Scalable high performance uFC-PGA socket model supports Pentium® M up to 2.0Ghz (PEB- 2710 series)
Standard BIOS with extension for additional embedded features
Dual independent display support CRT, LVDS and SDVO for other display possibility (SDVO through PMIO expansion interface )
On-board standard I/O, display, LVDS panel,network as a base board and flexible expansion board for versatile applications
One PMIO expansion connector (with PCI, PCI Express, I2S, LPC, AC-97, USB and SDVO) for versatile application

PEB-2730VL

3.5" Intel ECX form factor board base on Intel® LV Pentium® M or ULV Celeron® M Processor
