| Features |
|
|
| CPU |
| |
-Intel®
Pentium® M processor up to 1.8GHz |
| Chipset |
| |
Intel®
855GME + ICH4 chipsets up to 533/400MHz
FSB |
| System Memory |
| |
Up to 2GB DDR SDRAM on two 184-pin
DIMM |
| LAN Controller |
| |
-Gigabit Ethernet (Intel®
82541GI Gigabit LAN for 10/100/1000
Base-TX Fast Ethernet) |
| VGA Controller |
| |
Intel® 855GME chipset integrated
LVDS, VGA function
- Support LVDS panel, display up to
UXGA resolution
- 15pins D-Sub VGA connector |
| Expansion Interface
|
| |
- (3x) PCI slots |
| Serial ATA |
| |
- (2x) On-board Serial ATA ports |
| USB |
| |
Support 6x USB2.0 ports |
| Compact Flash |
| |
Type II socket (occupy IDE2 Master) |
| WDT & H/W
monitoring |
| |
Watchdog timer & hardware
monitoring function |
| Audio |
| |
AC97 Audio Codec |
| Dimension |
| |
9.6" x 9.6" (244mm x
244mm) |
| Form Factor |
| |
Industrial Micro ATX Motherboard |
|
|
| |
| Ordering
Guide |

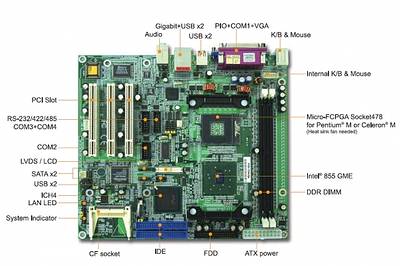

| PEB-7704VGA |
Industrial Micro ATX motherboard
based on Intel® Pentium®
M processor with Gigabit Ethernet/ Audio/ 4COM/
SATA/ CF/ LCD/ VGA |
| |
| Other
Industrial Micro ATX motherboard |
| PEB-7705VG2 |
Industrial Micro
ATX motherboard for Intel® Pentium® 4 or
Celeron® processor with VGA, Dual Gigabit LAN
and optional Audio |
|
| |
|
- Specifications are subject to change
without notice.
|
|
|
