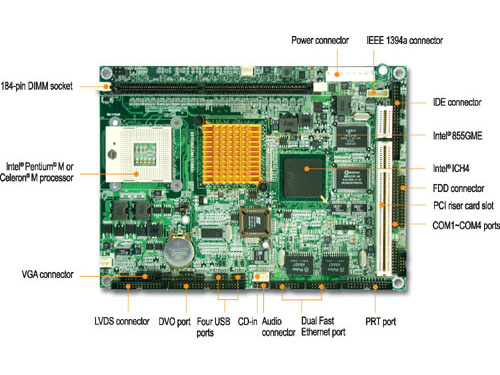

PEB-3730VLA
5.25" Embedded system board based on Intel® Pentium® M or Celeron® M® processor with DDR, AGP4X, VGA/panel, dual display, Fast Ethernet and audio



  • Dual independent display supports LVDS, VGA and DVO
  • Compact 5.25" ESB form factor to fit in the widest range of system architecture
  • New generation Intel® 855GME chipset
  • On-board standard I/O, display, LCD panel, network and audio to meet the requirements of communication and multimedia platforms
  • On-board 10BASE-T/100BASE-TX Ethernet (Gigabit Ethernet optional, with minimum quantity required)
  • Up to 1 GB high performance DDR allows to run versatile embedded programs
  • One PCI (with PCI expansion defined by EmbATX)
  • Type II CF socket for CompactFlash disk to provide space for resident system setting, data and software

Chipset

  • Intel® 855GME Extreme Graphics 2

Memory Size

  • DVMT 64MB shared DDR SDRAM

Resolution

  • 1600x1200 x 8bpp OR 1280x1024 x 16bpp

LCD / Panel Interface

  • LVDS; DVO; Dual Display support

TV-Out

  • N/A
Part No. Standard
PEB-3730VLA 5.25" Embedded system boardSB, based on Intel® Pentium® M or Celeron® M processor with DDR, AGP4X VGA/panel, dual display, 10/100 Ethernet and audio

  • Specifications are subject to change without notice.
