DVR System Platform |
 |

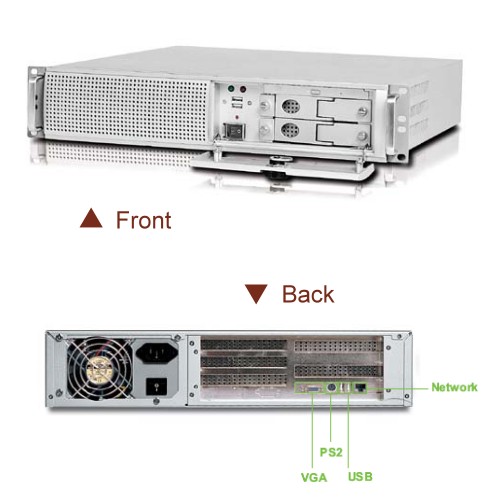

| PVS-24212U
Network standalone 4 PCI slot DVR hardware platform |
 |
|
|
Product
Brief |
Feature |
 |
 |
|
PVS-2421 are powered by IntelR PentiumR 4 processor up to 2.8 GHz. The built-in respective 845GV and 865
chipsets feature up to 2 GB of 200/266 DDR memory and up to 64 MB shared DDR memory. Combined
with other peripherals, they're equipped with more function, like TV-out, DVO and 64-pin PCI connector
for the addition of Ultra160 SCSI interface or second Ethernet, to fit into different complex applications. |
Other on-board features include multiple high-speed USB 2.0 ports, Watchdog Timer and H/W monitoring.
As for OS support, they work well under WindowsR XP, WindowsR 2000, Linux and Unix. Based on a heavy-duty
industrial computer design, PVS-2421 offer continuous reliability and service to those users who have sensitive and
critical uses. They are well suited not only in community but also in office building, factory, hospital and bank.
|
|
 |
 |
- Industrial grade platform
- 19" 2U rack-mount chassis 430x445x88 mm
- Intel® Pentium® 4 or Celeron® processor 2.0 ~ 2.8 GHz in the mPGA478 package
- Intel 865 GV integrated graphics with up to 64 MB shared DDR memory
- 4 PCI expansion slots
- One slim DVD-RW and two swappable 3.5" HDD
- TYPE II CF socket x1, USB x4, RS-232 x1, RS-485 x1
|
|
 |
 |
| PVS-2421-0000 |
2U rackmount 4 PCI slot DVR barebone |
| PVS-2421-H32C4 |
4 Ch. DVR System, With 1 4Ch DVC-3132 HW compression capture card |
| PVS-2421-H32C8 |
8 Ch. DVR System, With 2 4Ch DVC-3132 HW compression capture cards |
| PVS-2421-H32C16 |
16 Ch. DVR System, With 4 4Ch DVC-3132 HW compression capture cards |
|
