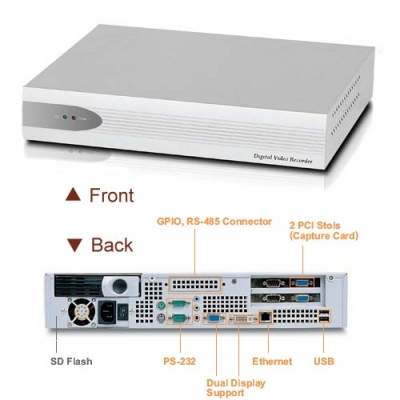

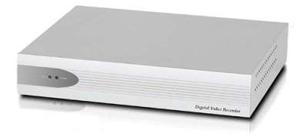

Leveraging years of experience in industrial PC industry, we rolled out the PVS-1125, a digital security surveillance (DSS) subsystem based on industrial computer platform. Simply plug in the capture cards, it can turn out to be a stable as well as hi-quality DSS system. Offering two PCI slots within the compact form factor, the PVS-1125 is able to capture videos from 8 channels. Combining with the optional SD board, you can have the OS and surveillance AP installed in the SD card and the recorded video stored in the HDD. This would significantly reduce the maintenance possibility resulting from the HDD failure. Meanwhile, it allows you to keep the stored data more conveniently by HDD swapping.

Besides, optional peripheral cards are offered to enable RS-485 and GPIO functionality.In addition, we have a unique design remote control that supports mouse, number keys, playback key and other application keys. This user friendly interface can replace the function of traditional mouse and keyboard and it is easy to perated. The PVS-1125 is powered by IntelR PentiumR 4 processor. The built-in 852GME chipset features up to 64MB shared DDR memory. Other features include up to 2 GB of 200/266 DDR memory, 2 USB 2.0 ports, 2 RS-232, (1 RS-485, GPIO board optional) ,and one 10/100 BASE-TX Fast Ethernet (Gigabit Ethernet optional).
