PICMG Backplane

PICMG backplane general description
  • 4-layer PCB with ground and power planes to reduce noise

  • Frame rated PCB at 94-V0

  • Support ATX type and 3.3V power connector

  • LED indicator for power signal status

  • Reserve terminal block connector for wiring

  • Equipped with gold-plated connector for better contact

  • No PCB bent after soldering



    		•

    PICMG Backplane

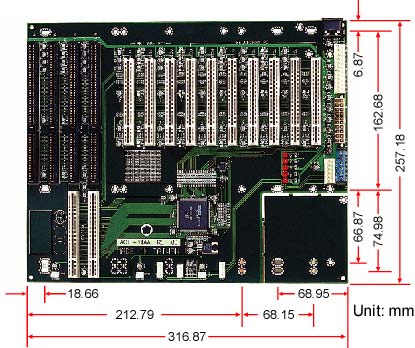

    ACTI-14AA
    14-Slot (10xPCI) PICMG Backplane

    • 3rd generation design of ACTI-Backplane
    • Enhanced PCB thickness to prevent bending
    • As many as 10 PCI slots to meet the demand of today's CTI applications
    • More PICMG CPU slots to fit versatile SBC boards
    • Specially designed capacitor which lowers the ESR and prevents explosion
    • Well-designed power ensures sufficient power is delivered to every slot


    ACTI-14P4
    14-Slot (4xPCI) PICMG Backplane

    • 3rd generation design of ACTI-Backplane
    • Enhanced PCB thickness to prevent bending
    • As many as 9 ISA slots capable of handling multiple bus applications
    • More PICMG CPU slots to fit versatile SBC boards
    • Specially designed capacitor which lowers the ESR and prevents explosion
    • Well-designed power ensures sufficient power is delivered to every slot

    ACTI-18AH
    18-Slot (17xPCI) PICMG Backplane

    • 3rd generation design of ACTI-Backplane
    • Enhanced PCB thickness to prevent bending
    • As many as 17 PCI slots for new CTI applications
    • More PICMG CPU slots to fit versatile SBC boards
    • Specially designed capacitor which lowers the ESR and prevents explosion
    • Well-designed power ensures sufficient power is delivered to every slot

    ACTI-19A7
    19-Slot (7xPCI) PICMG Backplane

    • 3rd generation design of ACTI-Backplane
    • Enhanced PCB thickness to prevent bending
    • As many as 11 ISA slots for legend bus applications
    • More PICMG CPU slots to fit versatile SBC boards
    • Specially designed capacitor which lowers the ESR and prevents explosion
    • Well-designed power ensures sufficient power is delivered to every slot

    PBP-08A7
    8-Slot (7xPCI) Active PICMG Backplane

    • Fit for any desktop chassis
    • Support 7 PCI slots
    • Support ATX type connectors

    PBP-14A7
    14-Slot (7xPCI) Active PICMG Backplane

    • Fit for 14-slot chassis
    • Suitable for advanced CTI applications
    • Support ATX type connectors

    PBPE-13A8
    13-Slot PICMG 1.3 Backplane

    • Fit for 4U chassis
    • 24-pin ESP 12V power connector
    • Four USB ports: dual SATA port
    • Dual independent PCI bus ( one bridge from PCI-E x1 link)
      •

    PBPE-06V
    Vertical 5-slot [PCI-E x 1 (4), PCI-E x 16 (1)]
    PICMG 1.3 Backplane

    • Fit for 2U chassis
    • Four USB ports
    • Dual SATA ports
      •
    • 24-pin ESP12V power connector

    PBP-14AC-B
    14-Slot (12xPCI) Active PICMG Backplane

    • Fit for 14-slot chassis
    • Suitable for advanced CTI applications
    • Support ATX type connectors

    PBP-14AC
    14-Slot (12xPCI) Active PICMG Backplane

    • Fit for 14-slot chassis
    • Suitable for advanced CTI applications
    • Support ATX type connectors

    PBP-19AC
    19-Slot (12xPCI) Active PICMG Backplane

    • Suitable for advanced CTI applications
    • Support ATX type connectors

    PBP-19AI
    19-Slot (18xPCI) Active PICMG Backplane

    • Suitable for advanced CTI applications
    • Support ATX type connectors

    PBP-02V1
    Vertical 2-Slot (1xPCI) PICMG Backplane

    PBP-02V1X
    Vertical 2-Slot (1xPCI) PICMG Backplane

    PBP-03P2
    Vertical 3-Slot (2xPCI) PICMG Backplane

    • Fit for Portwell's 1U chassis
    • AT power connector support

    PBP-03P2X
    Vertical 3-Slot (2xPCI) PICMG Backplane

    • Fit for Portwell's 1U chassis
    • ATX power connector support

    PBP-06V4
    Vertical 6-Slot (4xPCI) PICMG Backplane

    PBP-06P564
    6-slot (2x PCI-X , 3x PCI) 64-bit PICMG 1.2 Backplane

    • Fit for 6-slot node chassis
    • ATX & aux power connectors support

    PBP-06V564
    Vertical 6-slot (5xPCI-X) PICMG 1.2 backplane

    • Fit for 2U chassis
    • ATX power connector support

    PBP-06P3
    6-Slot (3xPCI) PICMG Backplane

    • Fit for some node chassis
    • Support ATX type connectors

    PBP-06P4
    6-Slot (4xPCI) PICMG Backplane

    • Fit for some node chassis
    • Support ATX type connectors

    PBP-08P3
    8-Slot (3xPCI) PICMG Backplane

    • Fit for some node chassis and desktop case

    PBP-08P4
    8-Slot (4xPCI) PICMG Backplane

    • Fit for some node chassis and desktop case
    • Support ATX type connectors

    PBP-13D4
    13-Slot Dual System Backplane

    • Designed for fault-tolerant computing
    • Support ATX type connectors
    • Fit for any 14-slot chassis

    PBP-13R4
    13-Slot (4xPCI) PICMG Backplane

    • Special design for full-lengthed PCI cards
    • Support ATX type connectors
    • Fit for any 14-slot chassis

    PBP-14P4
    14-Slot (4xPCI) PICMG Backplane

    • The most popular and reliable PICMG backplane
    • Support ATX type connectors
    • Fit for any 14-slot chassis

    PBP-14PD64
    14-slot (4xPCI-X) 64-bit PICMG 1.2 backplane

    • PICMG 1.2
    • Four PCI-X buses
    • 1 SHB, 2 PCI-X, 3 PCI-X, 3 PCI-X
      and 4 PCI-X
    • Fit for 4U chassis

    PBP-18D4
    18-Slot Dual System Backplane

    • Designed for fault-tolerant computing
    • Support ATX type connectors
    • Fit for any 20-slot chassis

    PBP-19P4
    19-Slot (4xPCI) PICMG Backplane

    • Reserve sufficient ISA slots for CTI applications
    • Support ATX type connectors
    • Fit for any 20-slot chassis


    * Specifications are subject to change without notice.
