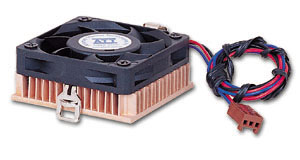

B9970060
DC Brushless Axial Cooling Fan

  • Special design for ROBO-679, ROBO-678
  • Support Pentium III processor up to 1GHz within 1U chassis

Specifications

Heat Sink Dimension

60x60x11 mm

Rated Voltage

12VDC

Operating Voltage

10.8 ~ 13.2VDC

Input Current

0.19A

Input Power

2.28W

Fan Rated Speed

5000RPM (± 10%)

Max. Air Flow (at zero static pressure)

19.1079CFM

Max. Air Pressure

0.1393 inch-H2O

Acoustical Noise

39.3dB (A), max. 41.7

Insulation Resistance

More than 10M OHM between internal stator and lead wire (+) mesured by 500VDC

[Back to SBC] * Specifications are subject to change without notice.
* Pentium III is a registered trademark of Intel Corporation.
* Other trademarks, logos, brand names and company names are the property of their respective owners.
