AREMO-7013
19" 2U industrial rackmount chassis for embedded M/B

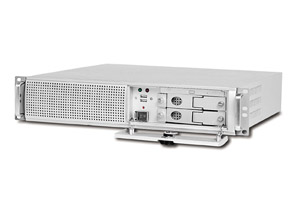

 2U Industrial rackmount chassis
Click for larger view

Features
  • One slim CD-ROM and two hot-swap 3.5" HDD
  • 2 USB ports at the front
  • Two 8 cm ball-bearing cooling fans for better ventilation
  • One power On/Off switch with protection cap and one touch-free reset for secure access
  • Field replaceable PS/2 power supply applicable for ease of maintenance
  • Internal replaceable air filter
  • 19" 2U rack-mount chassis meets EIA RS-310C industrial standard
  •  Specification
    General
    Construction

    Heavy-duty steel

    Drive Bay External: Slim type CD-ROM (x1) + Hot-swap 3.5" HDD (x2)
    Air Filter Two replaceable air filter
    Cooling Fan Two 8 cm ball-bearing fans
    Indicator HDD LED (x1) + Power LED (x1)
    Switch Power On/Off (x1), System reset (x1)
    Speaker One 8 ohm speaker
    Connector 2 USB ports on front
    Standard Color Silver, Beige, Black
    Dimension 19" (W) x 17.4" (D) x 3.5" (H)
    Weight Net: 23.1 lbs.
    Gross: 25.3 lbs.
    Riser Card PEP-5022: 2 PCI slots
    Power Supply PW-330ATXE-12V (Optional)
  • Specifications are subject to change without notice.
  • Other trademarks, logos, brands and company names are the property of their respective owner
  •
    Ordering Guide
    AREMO-7013-5022-330X 19" 2U rackmount chassis with vertical 2-slot (2xPCI) riser card and 330W ATX power supply
    AREMO-7013-5022-D3501P 19" 2U rack-mount chassis with vertical 2-slot (2xPCI) riser card and 350W PFC ATX power supply
