| General |
| Construction |
Heavy-duty steel
with aluminium front panel |
| Drive Bay |
External: 5.25"x3
Internal: 3.5" HDD x2 |
| Air Filter |
Three locations for one card retainer |
| Cooling Fan |

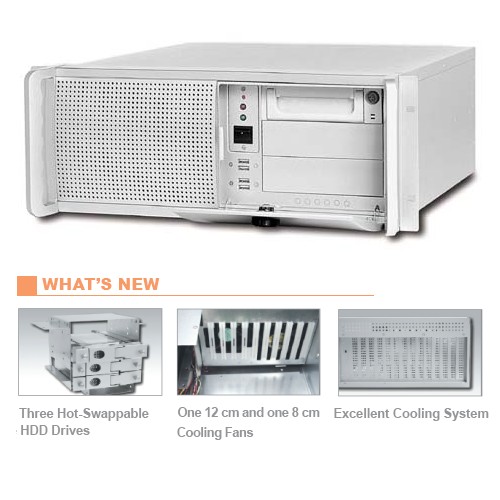

One 12cm and One 8cm ball-bearing
cooling fans |
| Indicator |
Power On/Off (x1) + HDD (x1) |
| Switch |
Power On/Off (x1), System reset (x1) |
| Connector |
2 USB ports on the front |
| Standard Color |
Silver |
| Dimension |
19" (W) x 18.1" (D) x 7"
(H) |
| Weight |
Net: 29.8 lbs.
Gross: 32 lbs. |
| Backplane |
PBP-14I
(14 slots ISA)
PBP-14AC
(14 slots active PICMG backplane)
PBP-14A7
(14 slots active PICMG backplane)
PBP-14P4
(14 slots PICMG backplane)
PBP-13D4
(13 slots dual system PICMG backplane)
|
| Power Supply |
PW-330ATXE-12V
(Optional) |
 |
|
Specifications are subject
to change without notice.
