AREMO-3194 |

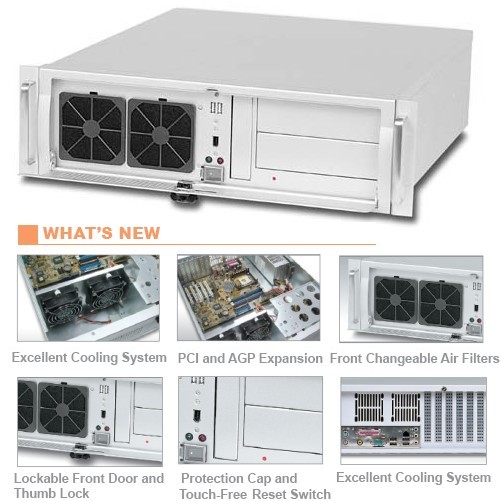

19" 3U rack-mount chassis for ATX M/B platform |
|
Click for larger Image
|
 |
|
IEEE 1394 port and two USB ports on the
front panel
Dedicate cooling fans for expiring the heat
on the hot spots within the chassis
Dustproof air filter for ease of clean and
exchange
Lockable front door provides better security
Thumb lock for better security and easy to
operate system
|
|
| |
| Construction |
Heavy-duty steel |
| Drive Bay |
External: 5.25"x2 +3.5"x1; Internal: 3.5"x1 |
| Air Filter |
Two replaceable air filter at front |
| Cooling Fan |
Two 8 cm ball-bearing fans |
| Indicator |
HDD LED (x1) + Power LED (x1) |
| Switch |
Power On/Off (x1), System reset (x1) |
| Speaker |
One 8 ohm speaker |
| Connector |
2 USB ports and 1 IEEE 1394 port on the front panel |
| Standard Color |
Silver, Beige, Black |
| Dimension |
19" (W) x 19.4" (D) x 5.25"
(H) |
| Weight |
Net: 35.3 lbs.
Gross: 39.7 lbs. |
| Backplane |
PBP-06V4
: Vertical 6 slots PICMG backplane
PBP-06I
: Vertical 6 slots ISA backplane |
 |
|
|
|
|
| AREMO-2173-06V4-330X |
19"
2U rackmount chassis with vertical 6
slots (4xPCI) PICMG backplane and 330W
ATX power supply |
| AREMO-2173-06V4-D3501P |
19"
2U rackmount chassis with vertical 6-slots
(4xPCI) PICMG backplane and 350W PFC
ATX power supply |
| AREMO-2173R-06V4-3002X |
19"
2U rackmount chassis with vertical 6
slots (4xPCI) PICMG backplane and 300W
redundant power supply |
|
|
|
|
|
|
|
|
-
Specifications are subject to change.
-
Other trademarks, logos, brands and
company names are the property of their respective owner
|
